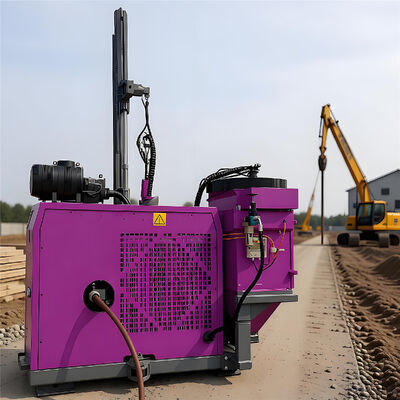

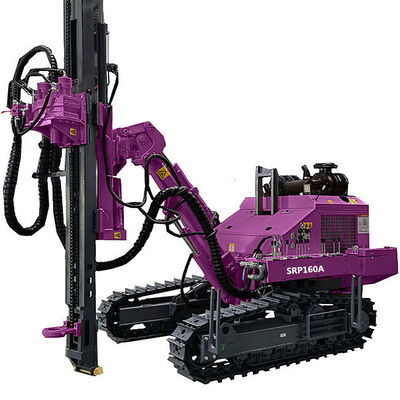

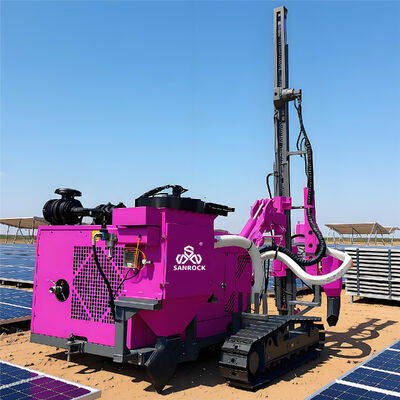

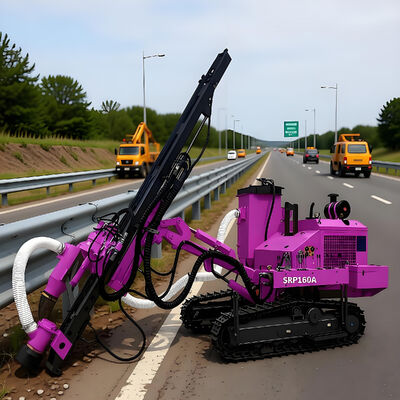

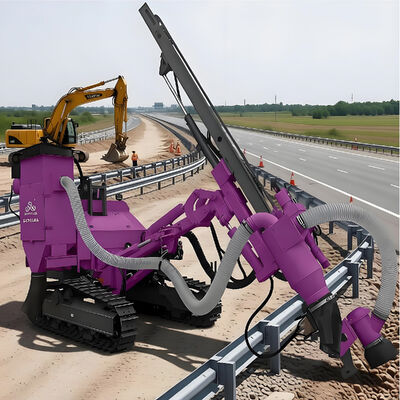

This anchor pile drilling rig is a dedicated hydraulic piling machine for photovoltaic power station foundation construction. It is designed for drilling anchor holes and installing ground anchor piles to fix solar panel brackets efficiently. Featuring a crawler chassis and adjustable drill mast, it adapts to farmland, hills, gravel and mixed soil terrain, supporting fast vertical and inclined drilling. It greatly improves the speed of solar foundation installation, ensures firm fixation of photovoltaic supports, and is widely used in large-scale photovoltaic farm projects and new energy ground anchoring construction.
Photovoltaic anchor pile drilling rig, specially developed for solar farm foundation anchoring works. Crawler mobile design, multi-angle adjustable drilling structure, suitable for various complex terrains. It quickly completes solar anchor pile drilling and fixing, providing stable foundation support for photovoltaic bracket systems and improving overall construction efficiency.
Photovoltaic anchor pile drilling rig, crawler hydraulic type, for photovoltaic power station ground anchor pile construction and solar bracket foundation fixing.
Products Description
| Brand Name:SANROCK Product Name:Pile Driver Engine Model: 73.5KW /78KW Engine Type:Water-cooled six-cylinder EFI diesel engine Rated power:73.5/2200Kw/RPM,78/2200Kw/RPM Drill rod changer Hole diameter :90-160mm Rod length:3m Rod diameter:60/64/76mm Rod quantity:7 Dust collector :Dry tydraulic dust collecting method (Wet type optional) Undercarriage Track width :253mm Groundclearance :420mm Track oscillation :±10° Walking speed :low 2, high 3 km/h Grade ability:30° Hydraulic system Hydraulic pressure :18bar (high pressure) Rotation motor Rotation rate :0-140rpm Max. rotation torque :3220Nm Feeding method Cylinder plus chain Feeding force :6KN Lifting force :16KN Feeding stroke :4105mm Promote compensation :1250mm Dimension(L*W*H):5500*2100*2200mm Weight:5600kg |
