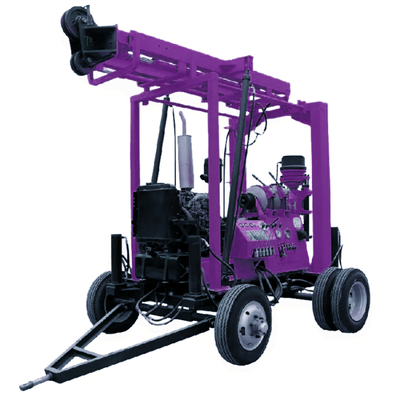

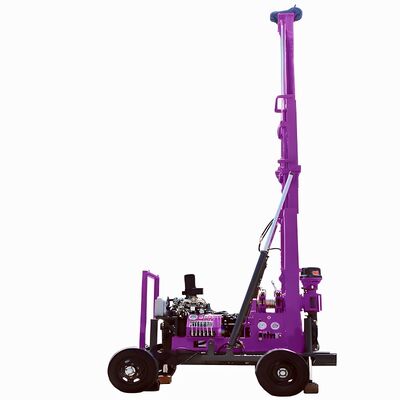

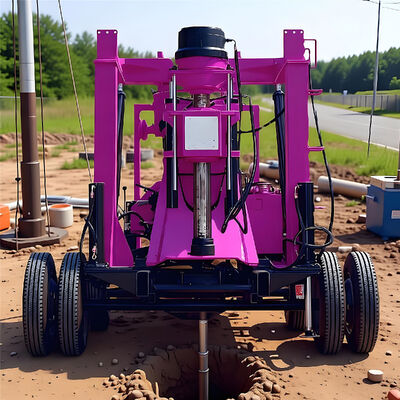

The SANROCK XYX-3 Portable Trailer Mounted Core Drilling Rig combines deep drilling capability with exceptional mobility. This hydraulic diamond core drill machine is mounted on a 6-wheel highway-towable trailer chassis, eliminating the need for flatbed trucks or crane-assisted loading/unloading between drill sites.
With a maximum drilling depth of 600m and a final hole diameter of 75mm, the XYX-3 trailer rig arrives on site ready to drill within 18 minutes — simply level the rig, extend stabilizers, connect the mud pump, and begin drilling. This rapid deployment capability makes the XYX-3 ideal for multi-hole exploration programs where rig moving time directly impacts project economics.
Mobility Advantages:
●One-piece trailer design — no disassembly required for transport
●Highway-legal towing with standard pickup truck or 4WD
●4 hydraulic stabilizer jacks for rapid leveling on uneven ground
●Hydraulic mast raise/lower for quick setup and teardown
●Total transport weight: 3600 kg
●Single operator can prepare rig for drilling in under 18 minutes
Ideal For: Exploration contractors managing multiple drill sites / rapid resource definition programs / remote area exploration where crane access is limited / short-duration geotechnical projects.
Product Description
| Type:Core Drilling Rig Power Type:Diesel Drilling depth:600m Drilling diameter:75-300mm Open hole diameter:300mm Final hole diameter:75mm Drill pipe:Φ60 Drilling inclination:90°--65° Vertical axis forward speed:32-1057r/min Vertical axis reversal speed:29-137r/min Vertical axis travel:600mm Vertical shaft bore diameter:96mm Vertical axis to enhance ability:60kN Single rope to enhance speed:0.5-1.9m/s Rope diameter:12.5mm Single rope to enhance ability:30kN Reel diameter:300mm Reel capacity:65m Mud pump (optional) Horizontal three-cylinder BW-250 mud pump Displacement:250L/min Work pressure:80kgcm2 Intake pipe diameter:76mm Outlet diameter:51mm Double gear pump:CBF-F63/25 Pre-flow pressure:63L/min 20Mpa Post-flow pressure:25L/min 20Mpa Diesel engine:CloudYN27/power 42kw / 2400rpm Motor:Y180L-4/22kW/1470rpm Rig weight:3600KG Dimensions:2900×2560×3300mm |
Company Information
Certificate
1.Do you provide design drawing and customization services for complete machines and drilling tools?
Please provide your technical specifications or project background details, and we are ready to develop a customized proposal based on your requirements.
This includes 2D and 3D design drawings , delivered in various formats including DWG, PDF, STEP, and IGES.
Our engineering team specializes in developing tailored solutions that meet your specific operational requirements, geological conditions, and performance objectives.
2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.
3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.
4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
