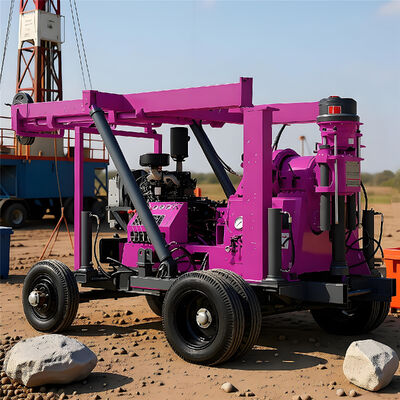

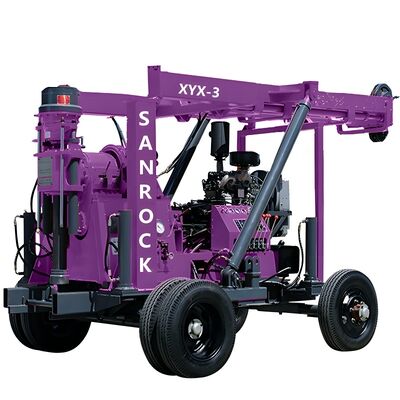

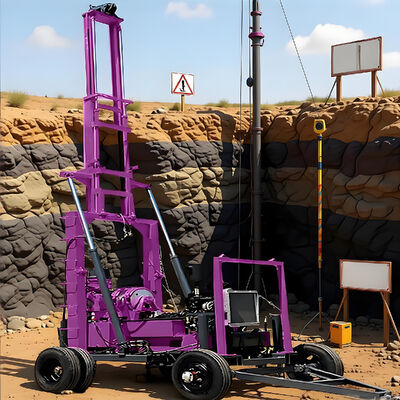

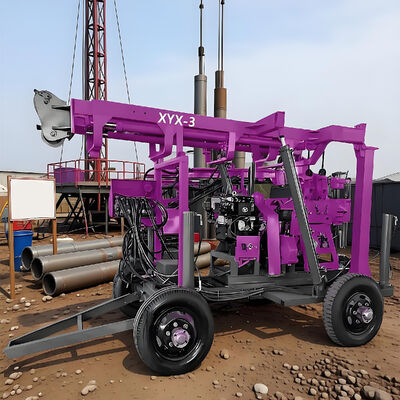

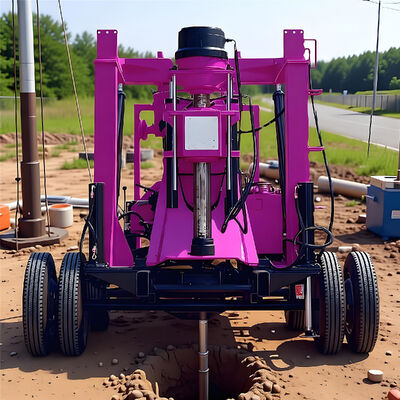

The SANROCK XYX-3 Multi-Purpose Core Drilling Rig is a versatile water well drilling rig and geological core drill machine in one platform. With a maximum drilling depth of 600m and a large open hole diameter of 300mm, the XYX-3 can drill water wells up to 300m deep while also performing diamond core sampling for geological assessment.
This dual-purpose design eliminates the need for separate water well and exploration drilling equipment — a significant cost advantage for contractors serving rural water supply projects that also require geological data. The 6-wheel trailer chassis ensures the rig can be towed to villages and remote communities with standard vehicles.
Dual Capabilities:
Water Well Mode:
●325mm open hole, mud rotary drilling, casing installation
Core Drilling Mode:
●75mm diamond core, geological sampling, mineral assessment
Power System:
●42KW diesel, runs mud pump and hydraulic system simultaneously
Mobility:
●Trailer-mounted, highway-legal towing
Target Markets: Africa rural water supply / community borehole projects / agricultural irrigation wells / NGO water development programs / geological survey + water well combo projects.
Product Description
| Type:Core Drilling Rig Power Type:Diesel Drilling depth:600m Drilling diameter:75-300mm Open hole diameter:300mm Final hole diameter:75mm Drill pipe:Φ60 Drilling inclination:90°--65° Vertical axis forward speed:32-1057r/min Vertical axis reversal speed:29-137r/min Vertical axis travel:600mm Vertical shaft bore diameter:96mm Vertical axis to enhance ability:60kN Single rope to enhance speed:0.5-1.9m/s Rope diameter:12.5mm Single rope to enhance ability:30kN Reel diameter:300mm Reel capacity:65m Mud pump (optional) Horizontal three-cylinder BW-250 mud pump Displacement:250L/min Work pressure:80kgcm2 Intake pipe diameter:76mm Outlet diameter:51mm Double gear pump:CBF-F63/25 Pre-flow pressure:63L/min 20Mpa Post-flow pressure:25L/min 20Mpa Diesel engine:CloudYN27/power 42kw / 2400rpm Motor:Y180L-4/22kW/1470rpm Rig weight:3600KG Dimensions:2900×2560×3300mm |
Company Information
Certificate
1.Do you provide design drawing and customization services for complete machines and drilling tools?
Please provide your technical specifications or project background details, and we are ready to develop a customized proposal based on your requirements.
This includes 2D and 3D design drawings , delivered in various formats including DWG, PDF, STEP, and IGES.
Our engineering team specializes in developing tailored solutions that meet your specific operational requirements, geological conditions, and performance objectives.
2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.
3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.
4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
