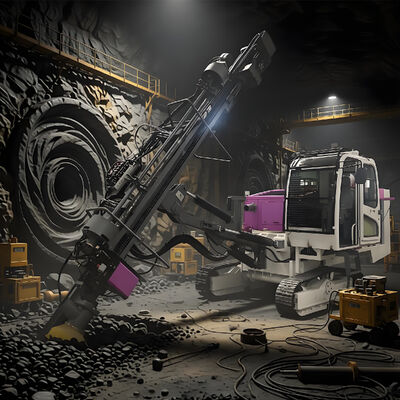

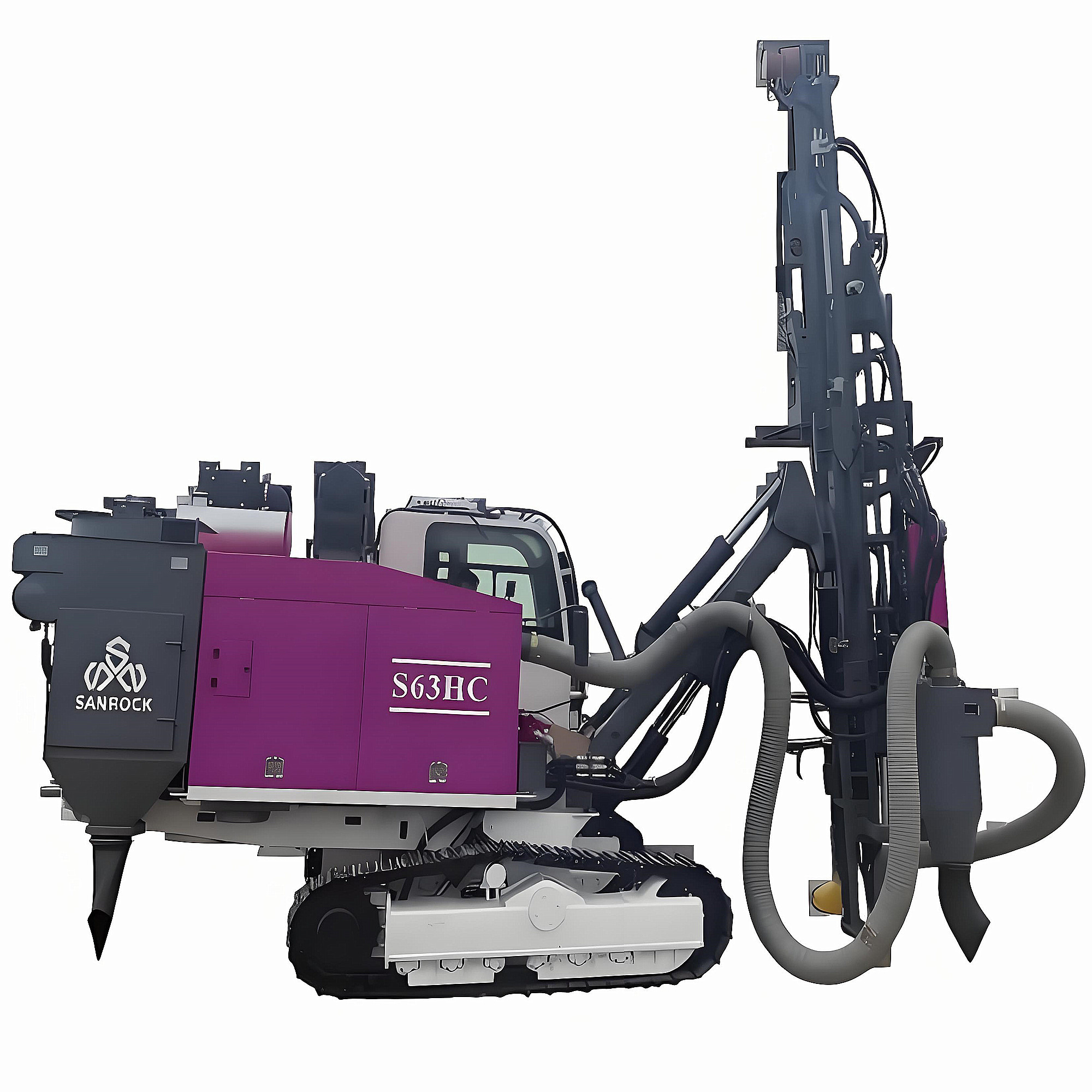

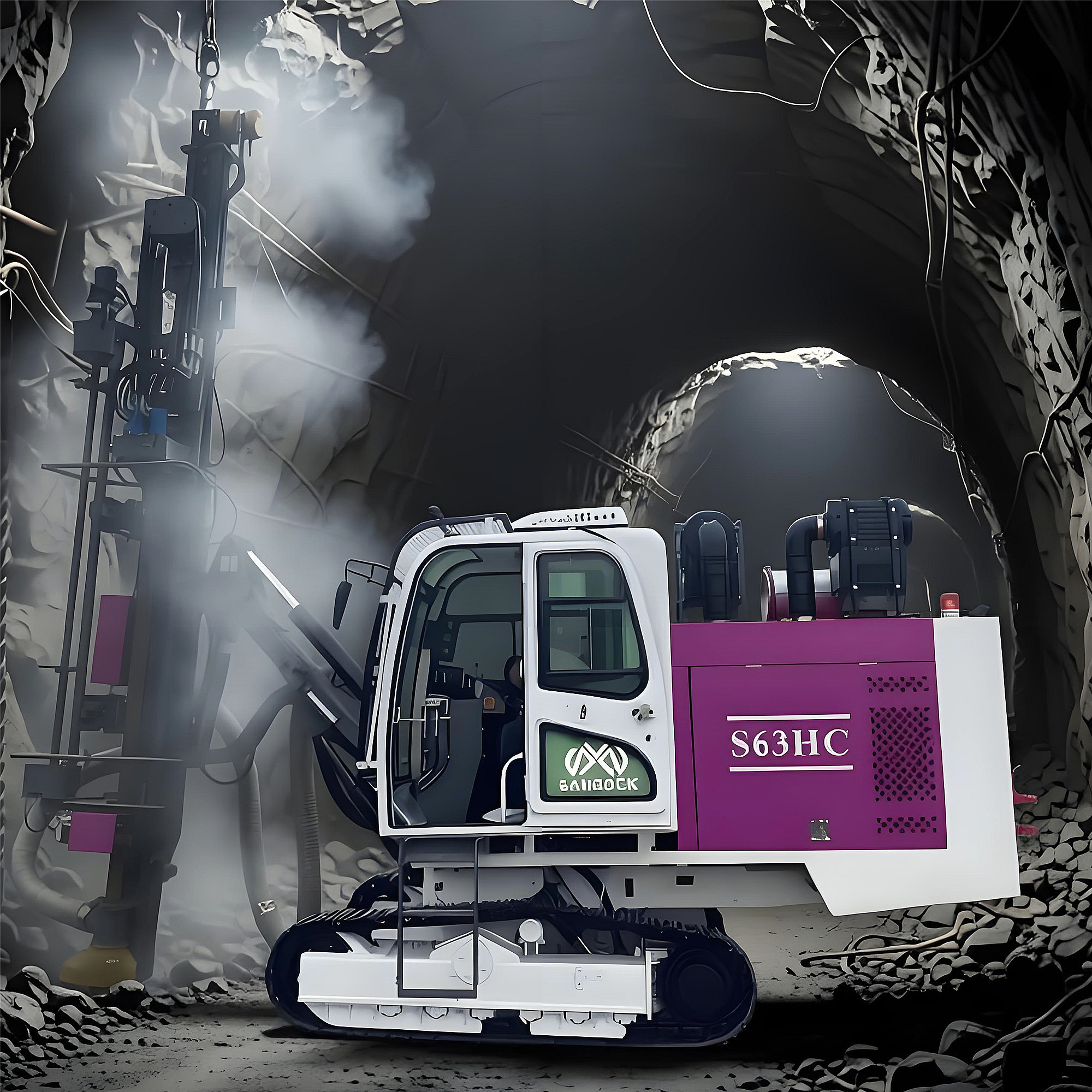

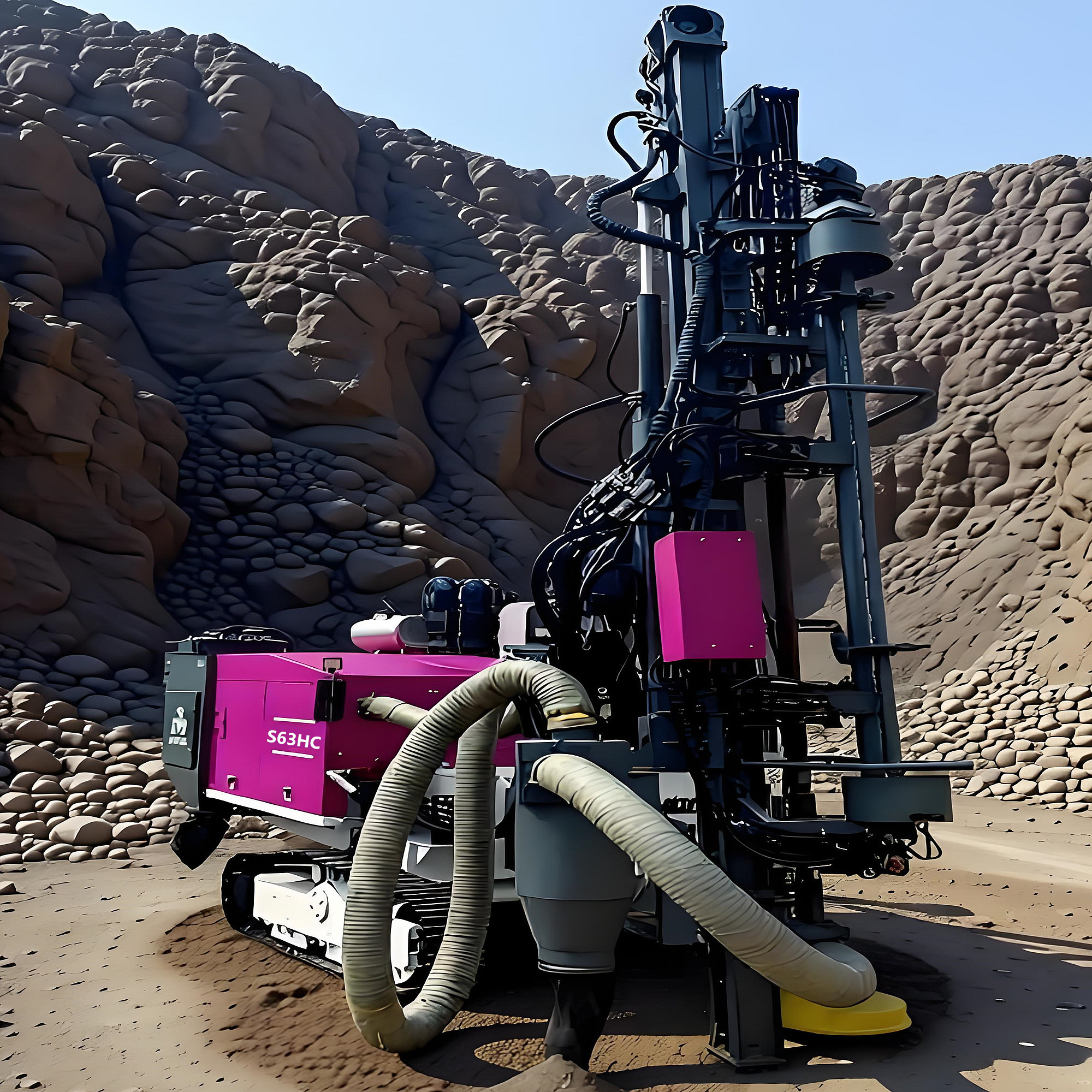

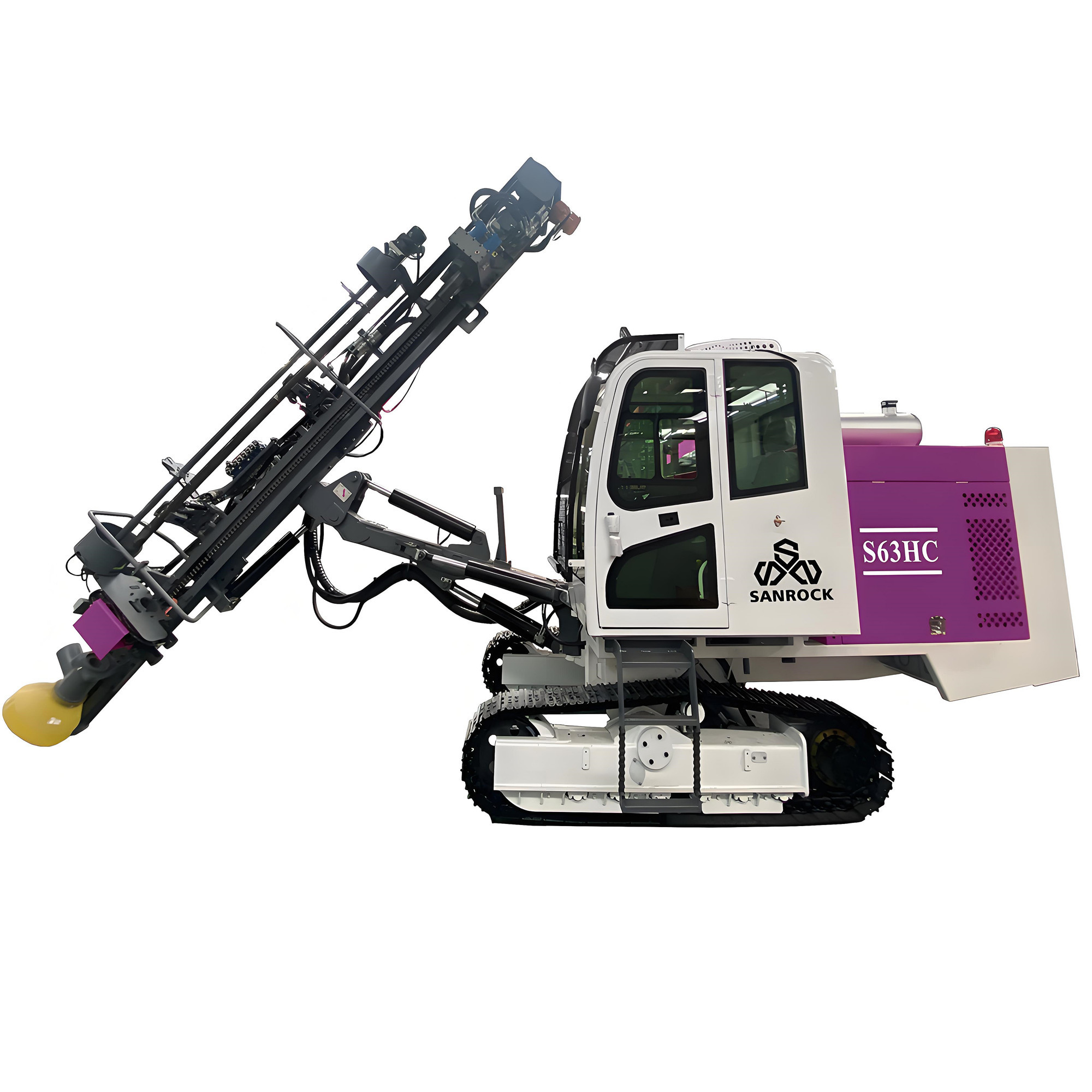

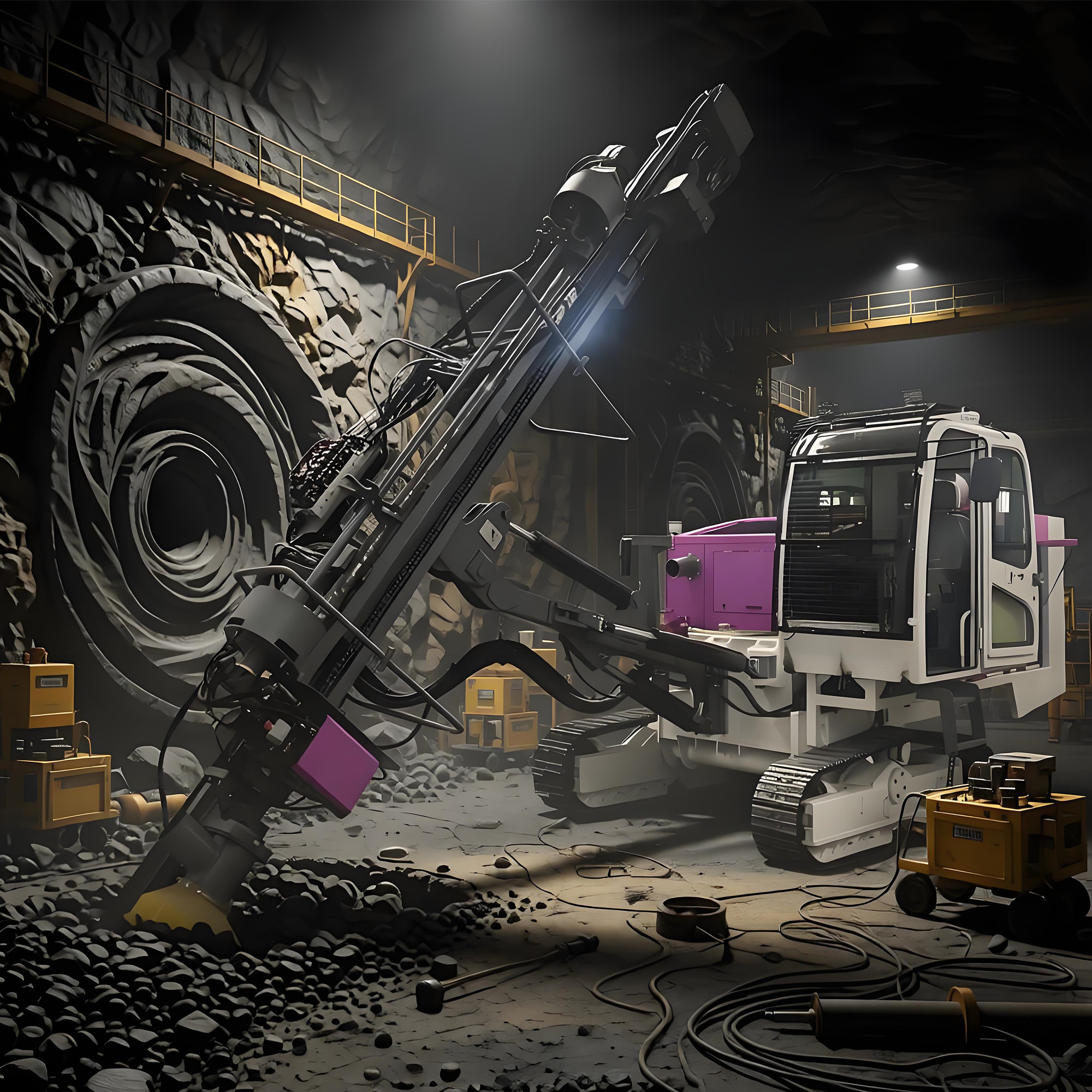

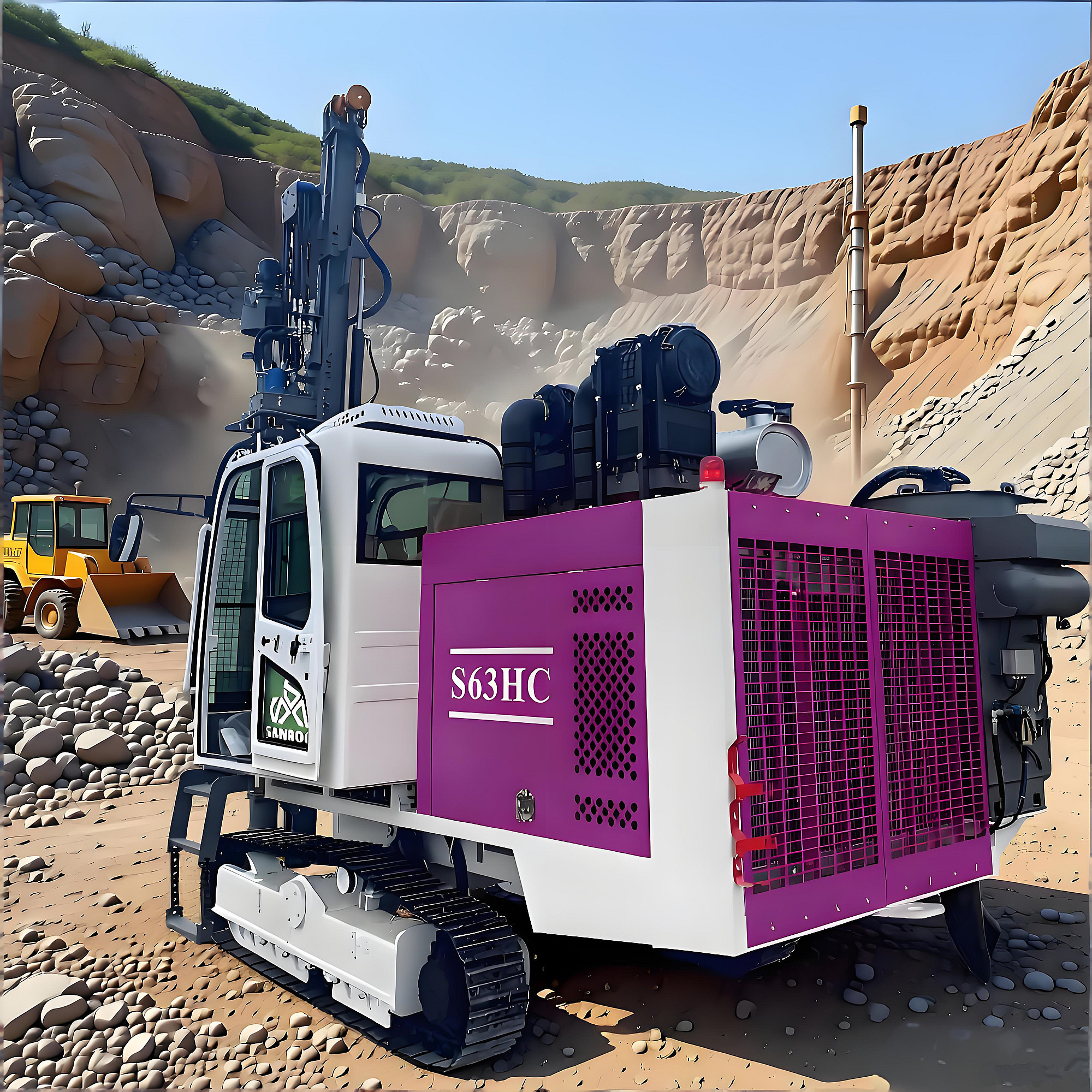

The mining drill featuring an integrated dry dust collection system and fully automatic rod-changing capability is a high-performance solution engineered for efficient, environmentally responsible drilling in surface and underground mining operations. Its built-in dry dust collection unit effectively captures airborne particles at the source using advanced filter technology, eliminating the need for water and making it ideal for arid or water-restricted sites. This dry system not only ensures compliance with strict environmental and health regulations but also protects operators from respirable dust, contributing to a safer workplace. Meanwhile, the fully automatic rod-changing mechanism handles rod loading, coupling, and storage without manual intervention, slashing cycle times by up to 40% and removing the most common cause of physical strain and injury. The two systems are seamlessly integrated into a single, compact platform, allowing for continuous, high-efficiency drilling while minimizing logistical complexity. A pressurized, soundproofed cabin further enhances operator comfort and safety, providing a dust-free environment with intuitive controls for real-time monitoring of both dust collection and drilling parameters. Combining dry dust control, full automation, and operator-centric design, this drill delivers superior productivity, reduced operating costs, and a significantly smaller environmental footprint—making it a future-ready asset for modern mining operations.
Product Description
AIR COMPRESSOR Compression stage:Single Air pressure:18bar Air delivery:16m3/Min Engine Model:QSB8.3(Tier 2) Rated power:194kw@1700rpm Rated torque:1135N.m@1500rpm PERFORMANCE Hole range:90-138mm Hole depth:21m Drill pipe :76*3000mm Rod change system:6+1 FEED Feed force(Push):20kN Feed force(Pull):25kN Feed stroke:3400mm Feed extension:1100mm Feed form:Motor+Chain/Cylinder+Wire rope TRAMMING Tramming speed :1.5/3.2km/h Track oscillation:10 Ground clearance:350mm HYDRAULIC ROTATION UNIT Torque:3300N.m Rotary speed:0-120rpm DUST COLLECTOR Filter are:14 square Filter element quantity :14PC Suction capacity:45m2/min OIL TANK CAPACITY Fuel:350L Hydraulic oil:200L Engine oil:18L Lub oil :10L Water tank:45L Compressor oil:50L Dimension(L*W*H):9100*2400*2250mm Weight:12000kg |
Company Information
1.Do you provide design drawing and customization services for complete machines and drilling tools?
Please provide your technical specifications or project background details, and we are ready to develop a customized proposal based on your requirements.
This includes 2D and 3D design drawings , delivered in various formats including DWG, PDF, STEP, and IGES.
Our engineering team specializes in developing tailored solutions that meet your specific operational requirements, geological conditions, and performance objectives.
2.How can I place the order?
Sign the PI,pay deposit,we will arrange the production. After finished production pay balance. Finally we will ship the goods.
3.How is the shipment? How long dose it take?
For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.
4.How is your quality control?
We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
Our comprehensive inspection service goes beyond basic checks. We analyze performance,and provide a detailed report to maximize your uptime, reduce operating costs, and extend the lifespan of your equipment.
