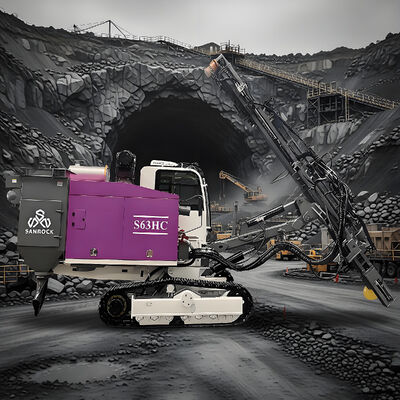

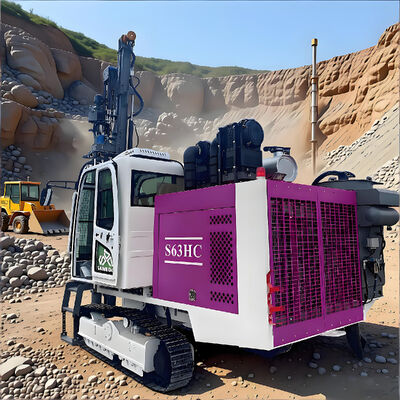

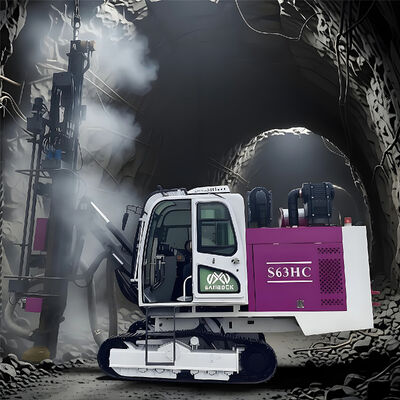

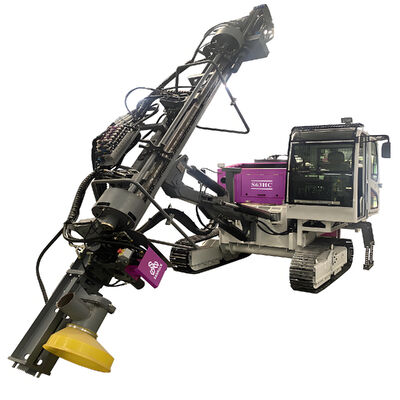

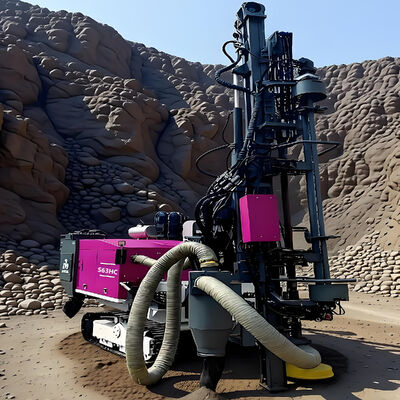

The fully automatic integrated rod-changing system mining drill is a cutting-edge drilling solution designed for high-efficiency underground and surface mining operations. Its core feature is a completely automated rod-handling mechanism, seamlessly integrated into the drill's chassis, which enables continuous drilling without manual intervention. This integration eliminates the need for separate rod storage and handling equipment, streamlining the entire drilling process. The system automatically loads, couples, and stores drill rods with precision, reducing cycle times by up to 40% while minimizing operator fatigue and safety risks. Equipped with a pressurized, soundproofed cabin, the drill provides a comfortable, dust-free environment with intuitive controls and real-time diagnostics. Robust hydraulic systems and a heavy-duty tracked undercarriage ensure reliable performance in challenging terrains. The integrated design also simplifies maintenance, reduces logistical footprint, and lowers overall operating costs. By combining full automation, compact integration, and operator-focused engineering, this drill maximizes productivity and safety, making it an essential asset for modern mining operations.
Product Description
AIR COMPRESSOR Compression stage:Single Air pressure:18bar Air delivery:16m3/Min Engine Model:QSB8.3(Tier 2) Rated power:194kw@1700rpm Rated torque:1135N.m@1500rpm PERFORMANCE Hole range:90-138mm Hole depth:21m Drill pipe :76*3000mm Rod change system:6+1 FEED Feed force(Push):20kN Feed force(Pull):25kN Feed stroke:3400mm Feed extension:1100mm Feed form:Motor+Chain/Cylinder+Wire rope TRAMMING Tramming speed :1.5/3.2km/h Track oscillation:10 Ground clearance:350mm HYDRAULIC ROTATION UNIT Torque:3300N.m Rotary speed:0-120rpm DUST COLLECTOR Filter are:14 square Filter element quantity :14PC Suction capacity:45m2/min OIL TANK CAPACITY Fuel:350L Hydraulic oil:200L Engine oil:18L Lub oil :10L Water tank:45L Compressor oil:50L Dimension(L*W*H):9100*2400*2250mm Weight:12000kg |
Company Information
1.Do you provide design drawing and customization services for complete machines and drilling tools?
Please provide your technical specifications or project background details, and we are ready to develop a customized proposal based on your requirements.
This includes 2D and 3D design drawings , delivered in various formats including DWG, PDF, STEP, and IGES.
Our engineering team specializes in developing tailored solutions that meet your specific operational requirements, geological conditions, and performance objectives.
2.How can I place the order?
Sign the PI,pay deposit,we will arrange the production. After finished production pay balance. Finally we will ship the goods.
3.How is the shipment? How long dose it take?
For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.
4.How is your quality control?
We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
Our comprehensive inspection service goes beyond basic checks. We analyze performance,and provide a detailed report to maximize your uptime, reduce operating costs, and extend the lifespan of your equipment.
