Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig

1か月あたり1Set/セット
MOQ
negotiable
価格
Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
製品名: 水力核掘削装置
名前: 掘削装置,核掘削装置
タイプ: 核掘削装置
使用法: 水井.コアサンプル
特徴: 高度な掘削効率,携帯性,軽量
応用: 地質調査
力: 16.2kw
定格速度: 2200R/min
穴あけ径: 75-325mm
掘削深度: 200m
ドリルの棒径: 42~60mm
寸法(長さ*幅*高さ): 2700*900*1500mm
アフターサービスの提供: オンラインサポート
立軸最大揚程重量: 25KN
立軸最大送り圧力：: 15kn
立軸最大出力トルク: 15kn
縦軸速度(4速): 71,142,310,620 r/min
垂直軸移動量: 450mm
穴の傾斜角: 90-75°
最終穴の直径: 75mm
単一パッケージのサイズ: 2150×880×1560mm
単体総重量: 760 kg
ハイライト:

hydraulic core drilling rig 100m

,

mining core drilling rig 200m

,

exploration drilling equipment hydraulic
基本情報
起源の場所: 浙江省、中国
ブランド名: SANROCK
証明: CE ISO 9001:2015
モデル番号: SRC200
お支払配送条件
パッケージの詳細: 機械用の裸パッケージ、スペアパーツ用の木箱パッケージ、または顧客の要望。
受渡し時間: 15-25日
支払条件: L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム
供給の能力: 月額5000Set/セット
製品の説明

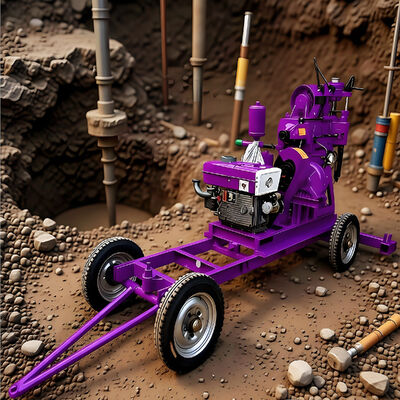

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 0

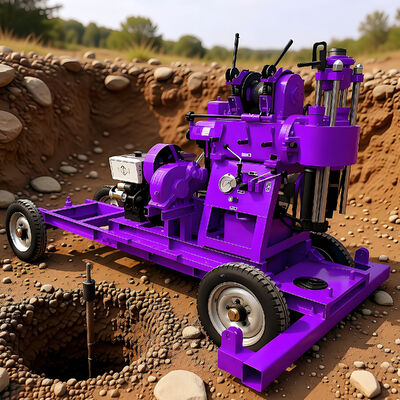

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 1

Mining Exploration Geological Core Drilling Rig – 200m Depth
This heavy-duty core drilling rig is purpose-built for underground and open-pit mining exploration, geological surveying, and mineral resource evaluation, with a maximum drilling depth of 200 meters.

Engineered to withstand the harsh conditions of mine sites, the rig features a reinforced steel frame, dust- and moisture-resistant components, and a robust hydraulic system that ensures reliable operation in confined or rugged environments.
Equipped with a high-torque rotary head and precise feed control, it supports diamond core drilling (NQ, HQ, BQ) and delivers high-quality, undisturbed core samples for accurate geological analysis.

The compact modular design allows for easy transport through mine tunnels and quick setup at drilling locations. Safety features such as overload protection and emergency shut-off are integrated for operator protection.
Ideal for mineral prospecting, grade control, and geotechnical investigation in mining operations, this rig combines field-proven durability, efficient coring performance, and a 200-meter depth capability tailored to the demands of the mining industry.

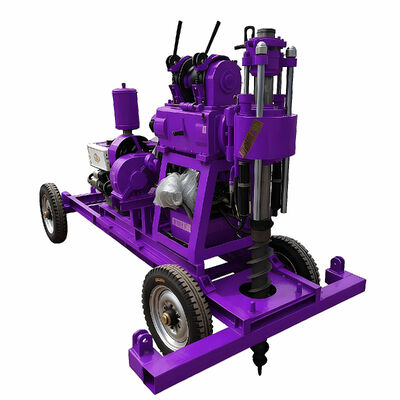

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 2

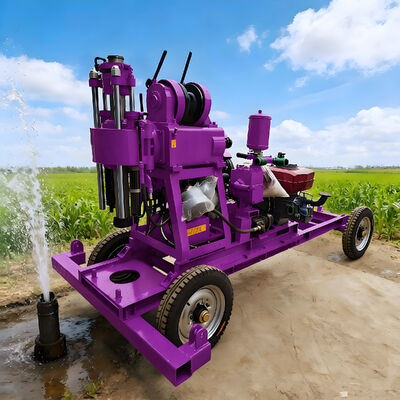

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 3

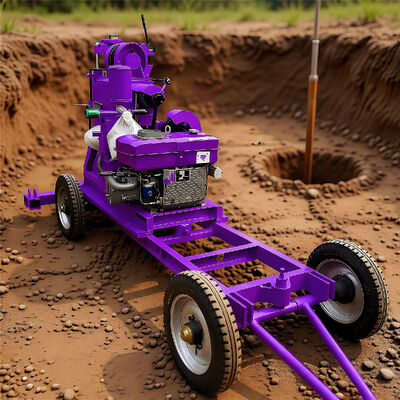

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 4

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 5

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 6

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 7

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 8

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 9

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 10



Products Description

Brand Name:SANROCK
Product name :Core Drilling Rig

Name: Core Drilling Machine
Power Type :Diesel

Feature :High Drilling Efficiency,portable,Light Weight
Packaging Details:packing according to customer's requirement.

Model number:Diesel engine
Rated speed:2200r/min
Power:16.2KW
Borehole depth:200M
Pipe diameter:50mm
Opening diameter:75-325mm
Final hole diameter:75mm
Hole dip Angle:90-75°
Gyrator
Vertical shaft speed(4th gear):71,142,310,620 r/min
Vertical shaft travel:450mm
Maximum output torque of vertical shaft:15KN
Maximum feed pressure of vertical shaft:15KN
Maximum lifting weight of vertical shaft:25KN
Single package size:2150×880×1560 mm
Single gross weight:760 kg

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 11

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 12

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 13

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 14

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 15

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 16

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 17

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 18

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 19

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 20

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 4

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 22

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 23
