Twist Drill Rod Foundation Piling DTH Drilling Pipe High Performance Spiral Drill Rod

25セット/セット/月
MOQ
negotiable
価格
Twist Drill Rod Foundation Piling DTH Drilling Pipe High Performance Spiral Drill Rod
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
製品名: 掘削棒
マシンタイプ: 掘削ツール
使用: 鉱石採掘,井戸掘削,石炭採掘,採石場,岩石掘削/水井採掘
タイプ: ドリル管、ドリル棒
アプリケーション: 大理石採石場、ダイヤモンド掘削、削岩機とロックビットと接続、バックホー
使用法: 削岩、採掘、穴あけ、石炭採掘、地質掘削
処理型: 鋳造,鋳造,低価格 トンガパイプ 掘削棒,熱処理
アドバンテージ: 高品質の工場価格 高強度 信頼性の高い材料 長寿命
テクノロジー: 乱すプロセスとナイトライド処理
長さ: 1M、1.5M、2M、2.5M、3M、6M
直径: 50~159mm
糸: 2 3/8 インチ API レジストレーション スレッド、3 1/2 インチ API レジストレーション
ハイライト:

high performance spiral drill rod

,

DTH drilling pipe with warranty

,

twist drill rod foundation piling

基本情報
起源の場所: 浙江省、中国
ブランド名: SANROCK
証明: CE ISO 9001:2015
モデル番号: ツイストドリルパイプ
お支払配送条件
パッケージの詳細: 機械用のヌードパッケージ、スペアパーツ用の木製ボックスパッケージ、または顧客の需要。
受渡し時間: 15-25日
支払条件: L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム
供給の能力: 月額5000Set/セット
製品の説明

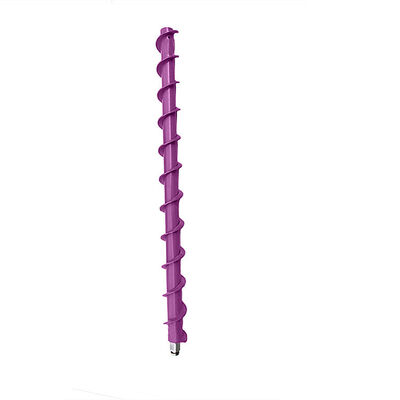

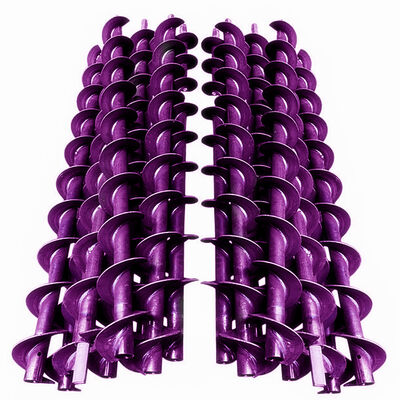

Twist Drill Rod Foundation Piling DTH Drilling Pipe High Performance Spiral Drill Rod 0

Twist Drill Rod Foundation Piling DTH Drilling Pipe High Performance Spiral Drill Rod 1

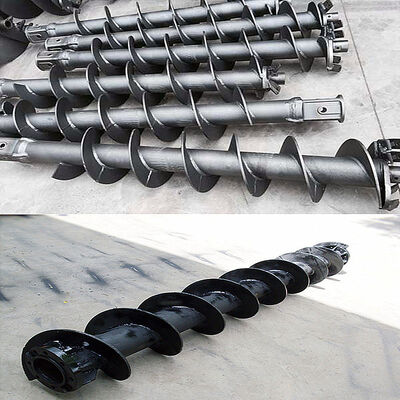

Anger drill pipe adopts single or double spiral blades, which are prestressed and wound, and then welded automatically. The drill pipe body is made of alloy steel pipe for geological drilling, and the drill pipe joint is made of alloy structural steel, which is made by high-pressure forming, vacuum conditioning, and friction welding. It has the characteristics of high bending strength, firm welding, and high slag removal efficiency. It has improved fatigue resistance and shear strength.

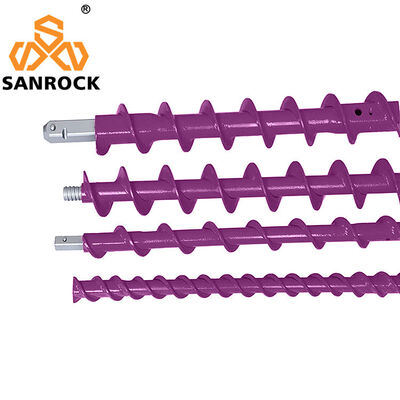

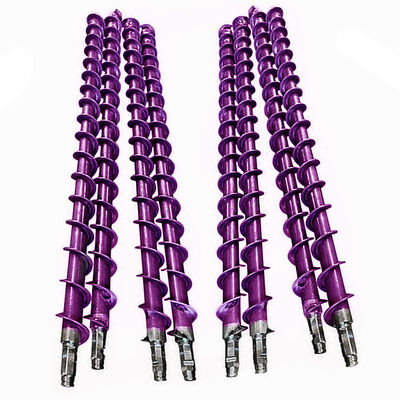

Drill pipes are widely used in mining,geological exploring and all kinds of drilling(water,oil,gas,etc) projects.As a leading drill pipe manufacture,we make all kinds of standards and non-standard drill pipes for our customers. Our drill pipes including steel drill pipe,mining drill pipe,water well drill pipe,oil well drill pipe,API drill pipe,DTH drill rod,wireline drill rod,etc. Spiral drill pipe is also called twist drill pipe, through the spiral vane winding & welding on the basis of the imitation of the drill pipe. This kind of drill rod guarantees high efficiency of drilling work. It has good drilling formability, drilling & slag discharge speed, suitable for coal seam gas drainage borehole.

Twist Drill Rod Foundation Piling DTH Drilling Pipe High Performance Spiral Drill Rod 2









Twist Drill Rod Foundation Piling DTH Drilling Pipe High Performance Spiral Drill Rod 3

Twist Drill Rod Foundation Piling DTH Drilling Pipe High Performance Spiral Drill Rod 4

Twist Drill Rod Foundation Piling DTH Drilling Pipe High Performance Spiral Drill Rod 5

Twist Drill Rod Foundation Piling DTH Drilling Pipe High Performance Spiral Drill Rod 6

Product Description

Diameter(mm) Thickness(mm) Thickening type Length(mm) Thread Board shank slot
76 5-8mm IU 1000/ 1500/ 2000/ 2500/ 3000/ 4000/ 5000/ 6000 2 3/8API REG Double buckle
Single buckle






89 6-9.35mm IU 1000/ 1500/ 2000/ 2500/ 3000/ 4000/ 5000/ 6000 2 3/8 IF Double buckle
Single buckle






102 7-8.38mm IU/IEU 1500/ 2000/ 2500/ 3000/ 4000/ 5000/ 6000 2 7/8 IF 3 1/2 REG Double buckle
Single buckle





114 6-9.35mm IU 1500/ 2000/ 2500/ 3000/ 4000/ 5000/ 6000 2 7/8 IF 3 1/2 IF/REG Double buckle
Single buckle





127 9mm IU 1500/ 2000/ 2500/ 3000/ 4000/ 5000/ 6000 3 1/2 IF Double buckle
Single buckle





140 8-12mm IU 3000/ 4500/ 5000/ 6000 4 1/2 REG or 4FH Double buckle
Single buckle



Twist Drill Rod Foundation Piling DTH Drilling Pipe High Performance Spiral Drill Rod 7

Twist Drill Rod Foundation Piling DTH Drilling Pipe High Performance Spiral Drill Rod 8



Twist Drill Rod Foundation Piling DTH Drilling Pipe High Performance Spiral Drill Rod 9

Twist Drill Rod Foundation Piling DTH Drilling Pipe High Performance Spiral Drill Rod 10

Twist Drill Rod Foundation Piling DTH Drilling Pipe High Performance Spiral Drill Rod 11

Twist Drill Rod Foundation Piling DTH Drilling Pipe High Performance Spiral Drill Rod 11

Twist Drill Rod Foundation Piling DTH Drilling Pipe High Performance Spiral Drill Rod 13Twist Drill Rod Foundation Piling DTH Drilling Pipe High Performance Spiral Drill Rod 14

Twist Drill Rod Foundation Piling DTH Drilling Pipe High Performance Spiral Drill Rod 15

Twist Drill Rod Foundation Piling DTH Drilling Pipe High Performance Spiral Drill Rod 16

Company Profile

Twist Drill Rod Foundation Piling DTH Drilling Pipe High Performance Spiral Drill Rod 17

Twist Drill Rod Foundation Piling DTH Drilling Pipe High Performance Spiral Drill Rod 18

Twist Drill Rod Foundation Piling DTH Drilling Pipe High Performance Spiral Drill Rod 19

1.What can you buy from us?

DTH drilling rig,Integrated DTH DTH drilling rig ,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,Underground jumbo drill rig ,DTH hammer,screw air compressor,screw air compressor,piston air compressor,pneumatic rock drill ,drill rod,drill bit,PDC drill bit,top hammer drill bit,tricone bit ,spare parts.



2.How can I make payment?

A:You can pay by credit card, TT, Western Union, LC etc.




3.How is the shipment? How long dose it take?

A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.




4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
