Top Hammer Drilling Equipment Portable Drilling Rig Machine Mining DTH Drill Rig  Manufacturer
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
製品名: トップハンマーDTH掘削リグ
名前: 鉱山掘削装置 水力掘削装置
パワータイプ: ディーゼル
パワー(w): 2200rpmで60kw
掘削直径: 40-100mm
掘削深度: 20m
空気消費: 1.8~5m3/分
歩行速度: 2.5km/h~3km/h
使用法: 岩石掘削 穴掘削 硬岩掘削
プレッシャー: 5バー
格付け能力: 30°
応用: ロック・ドリリング 鉱山
マシンタイプ: 掘削機器
タイプ: 回転掘削リグ
寸法(長さ*幅*高さ): 3800*1910*2200mm
重さ: 5000kg
特徴: 高く鋭い効率、油圧制御の競争価格
ハイライト:

portable top hammer drilling rig

,

mining DTH drill rig machine

,

manufacturer top hammer DTH rig

基本情報
起源の場所: 浙江省、中国
ブランド名: SANROCK
証明: CE ISO 9001:2015
モデル番号: T55
お支払配送条件
パッケージの詳細: 機械用のヌードパッケージ、スペアパーツ用の木製ボックスパッケージ、または顧客の需要。
受渡し時間: 15-25日
支払条件: L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム
供給の能力: 月額5000Set/セット
製品の説明

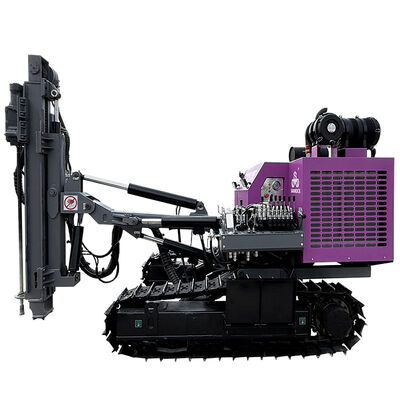

Top Hammer Drilling Equipment Portable Drilling Rig Machine Mining DTH Drill Rig  Manufacturer 0

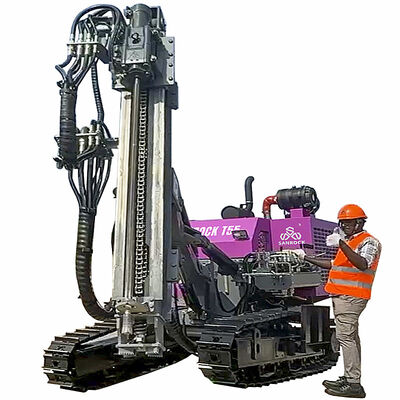

Top Hammer Drilling Equipment Portable Drilling Rig Machine Mining DTH Drill Rig  Manufacturer 1

Small top hammer drilling rigs are highly portable due to their compact and lightweight design.

They can be easily transported to various job sites, including remote or difficult - to - access areas.

Whether it's a small - scale construction project in a narrow urban alley, a geological exploration

in a mountainous region, or a mining operation in a confined space, these portable rigs can be

quickly deployed. Some models can even be carried by a single person or transported on a small

vehicle, significantly reducing the logistical challenges associated with equipment movement.

The top hammer drilling technology they employ provides high - energy impacts directly to the

drill bit. This results in efficient penetration into different types of rock formations.

They can be adjusted to work with various drill bit sizes and types, allowing for different boreholediameters and drilling depths to meet specific project requirements.

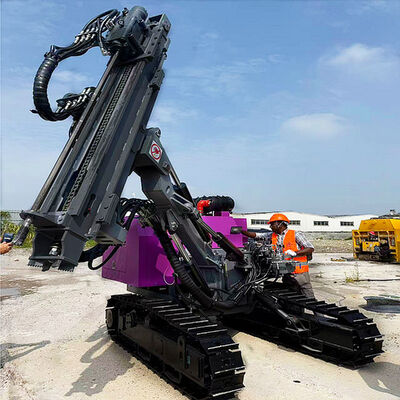

Top Hammer Drilling Equipment Portable Drilling Rig Machine Mining DTH Drill Rig  Manufacturer 2

Top Hammer Drilling Equipment Portable Drilling Rig Machine Mining DTH Drill Rig  Manufacturer 3Top Hammer Drilling Equipment Portable Drilling Rig Machine Mining DTH Drill Rig  Manufacturer 4Top Hammer Drilling Equipment Portable Drilling Rig Machine Mining DTH Drill Rig  Manufacturer 5

Top Hammer Drilling Equipment Portable Drilling Rig Machine Mining DTH Drill Rig  Manufacturer 6

Feature:

In terms of maintenance, these rigs are relatively easy to service. Their simple and modular designmeans that components are easily accessible for inspection, repair, or replacement.

This reduces downtime and maintenance costs, ensuring that the rigs can stay in operation for

longer periods with minimal disruptions. Furthermore, safety features are built into these portablerigs. Many models come with advanced control systems that allow operators to precisely control

the drilling process, reducing the risk of accidents. Additionally, safety guards and enclosures aredesigned to protect operators from moving parts and potential hazards during operation.In conclusion, Their portability, powerful performance, adaptability, easy maintenance, and safety

features make them an ideal choice for professionals across different industries.

Top Hammer Drilling Equipment Portable Drilling Rig Machine Mining DTH Drill Rig  Manufacturer 7Top Hammer Drilling Equipment Portable Drilling Rig Machine Mining DTH Drill Rig  Manufacturer 8

Top Hammer Drilling Equipment Portable Drilling Rig Machine Mining DTH Drill Rig  Manufacturer 9



Products Description

Product name
Drilling Rig
Power Parameters
Engine Model
4BTA3.9-C80-II
Rated Power
60kw at 2200rpm
Moving Parameters
Movement Speed
2.5km/h,3km/h
Climbing ability
30°
Machine parameters
Dimension
3800*1910*2200mm
Weight
5000kg
Clearance
260mm
Compressor Parameter
Air consumption
1.8-5 m3/min
Pressure
5 bar
Drilling parameters

Diameters
40-100mm
Depth
20m
Rock Drill
Weight
120kg
Length(without shank adapter)
655mm
width
299mm
height
204mm
Impact power
12.5kw
Max pressure
160Mpa
Flow rate
80L/min
Impact frequency
63HZ
Max Impact energy
200J


Top Hammer Drilling Equipment Portable Drilling Rig Machine Mining DTH Drill Rig  Manufacturer 10

Top Hammer Drilling Equipment Portable Drilling Rig Machine Mining DTH Drill Rig  Manufacturer 11

Top Hammer Drilling Equipment Portable Drilling Rig Machine Mining DTH Drill Rig  Manufacturer 12Top Hammer Drilling Equipment Portable Drilling Rig Machine Mining DTH Drill Rig  Manufacturer 13

Top Hammer Drilling Equipment Portable Drilling Rig Machine Mining DTH Drill Rig  Manufacturer 14

Top Hammer Drilling Equipment Portable Drilling Rig Machine Mining DTH Drill Rig  Manufacturer 15

Top Hammer Drilling Equipment Portable Drilling Rig Machine Mining DTH Drill Rig  Manufacturer 16



Top Hammer Drilling Equipment Portable Drilling Rig Machine Mining DTH Drill Rig  Manufacturer 17Top Hammer Drilling Equipment Portable Drilling Rig Machine Mining DTH Drill Rig  Manufacturer 18





Company Profile

Top Hammer Drilling Equipment Portable Drilling Rig Machine Mining DTH Drill Rig  Manufacturer 19

Top Hammer Drilling Equipment Portable Drilling Rig Machine Mining DTH Drill Rig  Manufacturer 20

Top Hammer Drilling Equipment Portable Drilling Rig Machine Mining DTH Drill Rig  Manufacturer 21

1.What can you buy from us?

DTH drilling rig,Integrated DTH DTH drilling rig ,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,Underground jumbo drill rig ,DTH hammer,screw air compressor,screw air compressor,piston air compressor,pneumatic rock drill ,drill rod,drill bit,PDC drill bit,top hammer drill bit,tricone bit ,spare parts.



2.How can I make payment?

A:You can pay by credit card, TT, Western Union, LC etc.



3.How is the shipment? How long dose it take?

A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.



4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
