Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine

1ヶ月あたりの1Set/Sets
MOQ
negotiable
価格
Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
製品名: 水力核掘削装置
Name: コアボール盤
適用する: 掘削機 鉱山勘探
電源タイプ: ディーゼル
掘削深さ: 180m
掘削直径: 75-220mm
マッチングパワー:: 13.2kw
寸法(長さ*幅*高さ): 2400*800*1400mm
体重: 750kg
持ち上げ力: 60K.N
マックス.トーク: 980N.m
推力 (K.N): 40K.N
上げ速度 ヘッド: 0.35-2.23m/min
名乗荷重: 180トン
タイプ: 核掘削装置
用途: 水井,石炭,水井.コアサンプル
特徴: 軽量,高掘削効率,ポータブル,地質核加工機
ハイライト:

Rock Core Drill Rig

,

High Quality Diamond Core Drill Rig

,

Mobile Core Drill Rig

基本情報
起源の場所: チェジアン,中国
ブランド名: SANROCK
証明: CE ISO 9001:2015
モデル番号: SRC180
お支払配送条件
パッケージの詳細: 機械のヌードパッケージ 部品の木箱パッケージ または顧客の要求
受渡し時間: 18 営業日
支払条件: 信用状、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム
供給の能力: 5000セット/セット/月
製品の説明

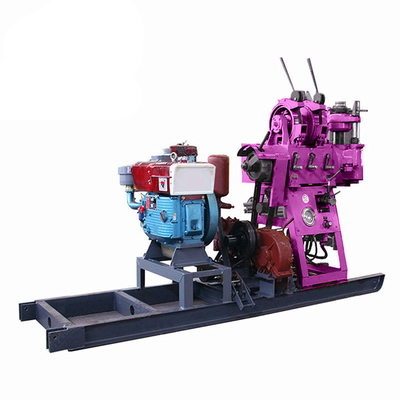

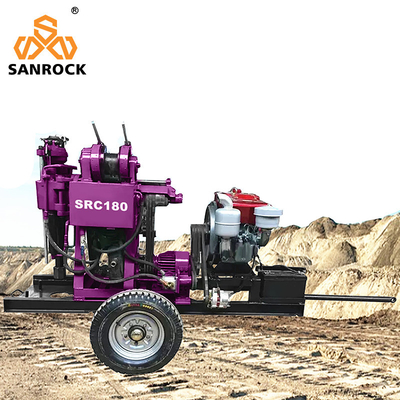

Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine 0Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine 1

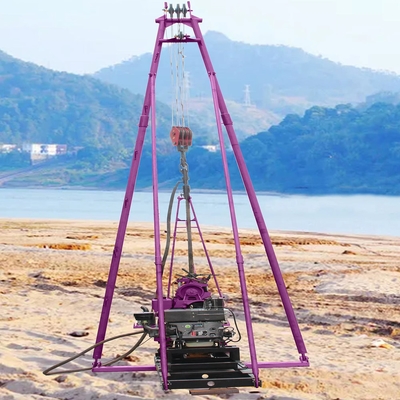

Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine 2

Portable Exploration Core Drilling Rig
Designed for efficient geological sampling and mineral exploration, this lightweight core drilling rig integrates portability with high performance. Featuring a compact, ergonomic design, it is ideal for field operations in remote or confined environments. Equipped with a high-torque, low-noise motor and durable diamond core bits, it ensures precise and fast penetration through rock, soil, or concrete layers. The modular structure allows quick assembly and disassembly.
Suitable for shallow-to-moderate depth sampling (up to 180meters), Built with corrosion-resistant alloys and foldable components, this rig prioritizes user convenience.

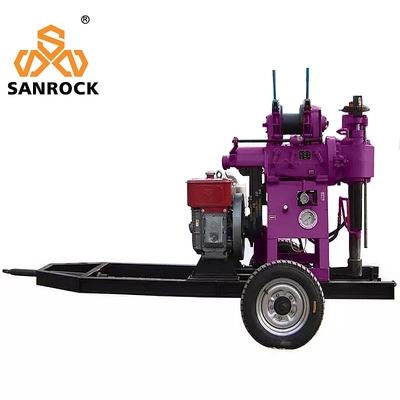

Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine 3

Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine 4

Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine 5













Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine 6

Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine 7

Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine 8

Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine 9



Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine 10

Products Description

Product Name: Core Drilling Rig
Model:SRC180
Drilling depth: 180m
Open hole dia:220mm
End hole dia:75mm
Drill rod dia:42-60mm
Drill angle:90-75°
Matching power:13.2kw
Weight without power :620/750kg
Dimensions :2400*800*1400mm
Speed :130/300/480/730/830/1045 r/min
Stroke :450mm
Max.torque :980N.m
Thrust :40k.N
Lifting force :60K.N
Single rope lift force :2100kg
Lifting speed head :0.35-2.23m/min
Rope dia:D9.3mm
Roll capacity :27m
Rated load :18ton
Height:6.5m
Displacement :95L/min
Max.pressure :1.2MPa
Times :93per min
Inlet hose dia:51mm
Outlet hose dia:32mm




Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine 11

Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine 12

Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine 13

Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine 14

Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine 15Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine 16

Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine 17Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine 18

Company Profile

Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine 19

Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine 20

Diamond Core Drill Rig High Quality Mobile Drilling Rig Rock Core Drilling Machine 21

1.What can you buy from us?
DTH drilling rig,core drilling rig,reverse circulation drilling rig ,highway pile driver,solar pile driver ,
anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,DTH hammer,drill rod,
screw air compressor,water well drilling rig,truck mounted water well drilling rig,screw air compressor,
piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.

2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.

3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping.
Shipping efficiency depends on country and city you want to ship to.
For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
