High Pressure Screw Air Compressor Wheel Air Compressor Small Rotary Screw Air Compressor

1 セット
MOQ
negotiable
価格
High Pressure Screw Air Compressor Wheel Air Compressor Small Rotary Screw Air Compressor
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
製品名: スクロールエアコンプレッサー,エアコンプレッサーマシン
Name: スクロール式空気圧縮機
特徴: 高く鋭い効率、競争価格
適用する: 採石場,水井,建築など
エンジンのブランド: カミングス
モーターパワー: 162kw
作業圧: 18bar
空気消費量: 16m2/min
燃料タンク容量: 210L
タイプ: 2/4ホイール (ブレーキシステム付き)
構成: 携帯機
寸法(長さ*幅*高さ): 3050*1800*2300mm
体重: 2800kg
条件: 新しい
保証: 1 年
アフターサービス提供: オンラインサポート
冷却方法: 空冷
ハイライト:

Small Rotary Screw Air Compressor

,

Screw Air Compressor

,

Wheel High Pressure Screw Air Compressor

基本情報
起源の場所: チェジアン,中国
ブランド名: SANROCK
証明: CE ISO 9001:2015
モデル番号: QSDP600CY
お支払配送条件
パッケージの詳細: 機械のヌードパッケージ 部品の木箱パッケージ または顧客の要求
受渡し時間: 12〜20日
支払条件: L/C,D/A,D/P,T/T,ウェスタンユニオン,マネーグラム
供給の能力: 5000セット/セット/月
製品の説明


High Pressure Screw Air Compressor Wheel Air Compressor Small Rotary Screw Air Compressor 0High Pressure Screw Air Compressor Wheel Air Compressor Small Rotary Screw Air Compressor 1High Pressure Screw Air Compressor Wheel Air Compressor Small Rotary Screw Air Compressor 2



The compactness and modularity of portable screw air compressor equipment. Such a design is not only convenient for installation and transportation, but also simplifies the later maintenance process.

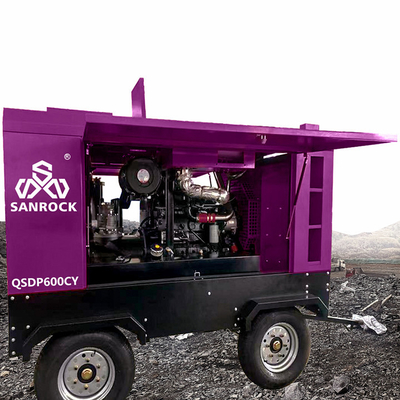

Users can easily access the core components by quickly disassembling the panel, significantly reducing maintenance time. Meanwhile, the optimization of the cooling system is also a crucial aspect that cannot be ignored. By adopting advanced heat exchange technology, the equipment can maintain stable operation even in high-temperature environments, avoiding downtime caused by overheating.
Regarding noise control, modern screw air compressors are usually equipped with sound insulation covers or noise reduction devices, effectively lowering the noise level during operation and making them more suitable for use in places with higher environmental requirements.

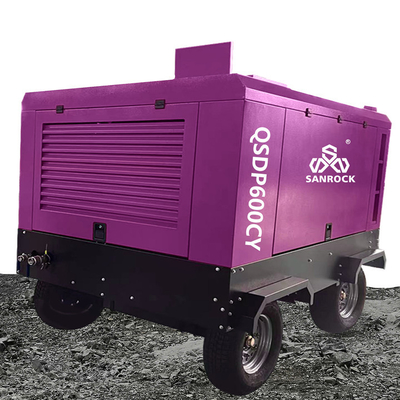

Portable screw air compressors are robust, portable solutions designed for demanding mining operations. Equipped with high-efficiency rotary screw technology, these compressors deliver reliable, continuous airflow to power critical mining equipment such as drilling rigs, pneumatic tools, rock splitters, and ventilation systems. Their compact, wheel-mounted design ensures easy mobility across rugged terrain, while heavy-duty construction withstands harsh environments, including dust, vibrations, and extreme temperatures.


High Pressure Screw Air Compressor Wheel Air Compressor Small Rotary Screw Air Compressor 3High Pressure Screw Air Compressor Wheel Air Compressor Small Rotary Screw Air Compressor 4High Pressure Screw Air Compressor Wheel Air Compressor Small Rotary Screw Air Compressor 5High Pressure Screw Air Compressor Wheel Air Compressor Small Rotary Screw Air Compressor 6



Products Description

Configuration
PORTABLE
Power
157kw
Brand Name
SANROCK
Model Number
QSDP600CY
Dimension(L*W*H)
3050*1800*2300mm
Weight
2800kg
Working Pressure
18bar
Product name
Screw Air Compressor
Application
mining quarry, water well,constructure,etc
Keywords
Air Compressor Screw
Feature
High Efficiency
Capacity
16m3/min
Fuel tank capacity
210L
Oil-gas tank capacity
48L
Outlet Valve
G1"/G11/2"
Type
2/4 wheel (With brake system)
Diesel engine
Cummins
Cooling method
Air Cooling


High Pressure Screw Air Compressor Wheel Air Compressor Small Rotary Screw Air Compressor 7

High Pressure Screw Air Compressor Wheel Air Compressor Small Rotary Screw Air Compressor 8

High Pressure Screw Air Compressor Wheel Air Compressor Small Rotary Screw Air Compressor 9High Pressure Screw Air Compressor Wheel Air Compressor Small Rotary Screw Air Compressor 10

High Pressure Screw Air Compressor Wheel Air Compressor Small Rotary Screw Air Compressor 11High Pressure Screw Air Compressor Wheel Air Compressor Small Rotary Screw Air Compressor 12

High Pressure Screw Air Compressor Wheel Air Compressor Small Rotary Screw Air Compressor 13

High Pressure Screw Air Compressor Wheel Air Compressor Small Rotary Screw Air Compressor 14High Pressure Screw Air Compressor Wheel Air Compressor Small Rotary Screw Air Compressor 15

Company Profile

High Pressure Screw Air Compressor Wheel Air Compressor Small Rotary Screw Air Compressor 16





High Pressure Screw Air Compressor Wheel Air Compressor Small Rotary Screw Air Compressor 17

High Pressure Screw Air Compressor Wheel Air Compressor Small Rotary Screw Air Compressor 18

1.What can you buy from us?
DTH drilling rig,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,hydraulic scaling rig,DTH hammer,drill rod,screw air compressor,water well drilling rig,truck mounted water well drilling rig,reverse circulation drilling rig,environmental drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.



2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.



3. How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.



4.How is your quality control?
A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.
