ホーム /製品/DTH の鋭い機械/DTH Drill Machine Portable Drilling Equipment Rotary Torque 365N.m Pneumatic Drilling Rig

DTH Drill Machine Portable Drilling Equipment Rotary Torque 365N.m Pneumatic Drilling Rig

1 セット
MOQ
negotiable
価格
DTH Drill Machine Portable Drilling Equipment Rotary Torque 365N.m Pneumatic Drilling Rig
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
製品名: クローラー・ドリリング・リグ
電力 (W): 3.8KW
電源タイプ: ディーゼル
掘削深さ: 20〜30m
掘削直径: 50~115mm
グレード可能性: 35°
スイング角度: 13°
空気量: 15〜25m3/min
回転式トルク: 365N.m
空気消費量: 16mの³ /min
作業圧: 1.0mpa
水力タンク容量: 55L
回転速度: 380回転/分
最大前進推力: 11KN
アプリケーション: 鉱山、石切り場、あく送風穴、鉱山および構造
移動速度: 3.5Km/h
特徴: 高く鋭い効率、競争価格
寸法(長さ*幅*高さ): 5777*2210*1942mm
体重: 5400kg
タイプ: ローター式掘削装置
ハイライト:

Pneumatic DTH Drill Machine

,

365N.m DTH Drilling Equipment

,

Portable DTH Drilling Equipment
基本情報
起源の場所: チェジアン,中国
ブランド名: Sanrock
証明: CE ISO 9001:2015
モデル番号: SPC300T カスタマイズ
お支払配送条件
パッケージの詳細: 掘削装置用の裸パック 部品用の木製パック または顧客の要求
受渡し時間: 18~25 営業日
支払条件: 信用状、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム
供給の能力: 3000セット/セット/月
製品の説明

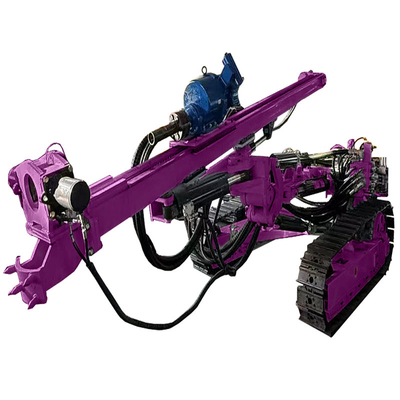

DTH Drill Machine Portable Drilling Equipment Rotary Torque 365N.m Pneumatic Drilling Rig 0

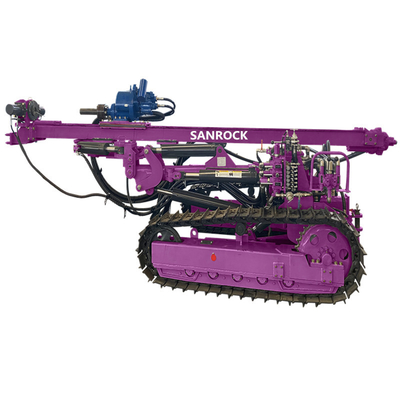

DTH Drill Machine Portable Drilling Equipment Rotary Torque 365N.m Pneumatic Drilling Rig 1

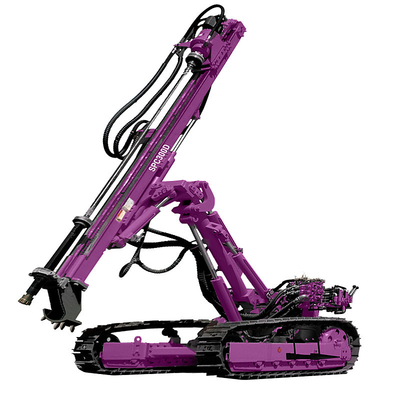

DTH Drill Machine Portable Drilling Equipment Rotary Torque 365N.m Pneumatic Drilling Rig 2

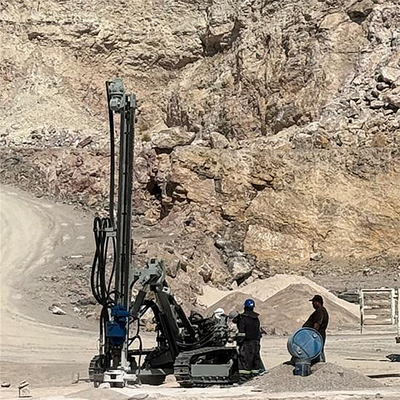

DTH Drill Machine Portable Drilling Equipment Rotary Torque 365N.m Pneumatic Drilling Rig 3DTH Drill Machine Portable Drilling Equipment Rotary Torque 365N.m Pneumatic Drilling Rig 4



DTH Drill Machine Portable Drilling Equipment Rotary Torque 365N.m Pneumatic Drilling Rig 5

The crawler-mounted fully pneumatic DTH drill rig is a robust and versatile drilling machine designed for efficient rock penetration in challenging terrains. Powered entirely by compressed air, this track-mounted equipment integrates a high-performance pneumatic hammer system with a crawler chassis for enhanced mobility across uneven surfaces. Featuring a durable DTH hammer assembly and rotary mechanism, it excels in deep-hole drilling applications such as mining exploration, quarrying, and construction blasting.
Mining drilling rig delivers powerful percussive force for precise vertical or angled drilling in hard rock formations, improved operational safety and productivity.



DTH Drill Machine Portable Drilling Equipment Rotary Torque 365N.m Pneumatic Drilling Rig 6DTH Drill Machine Portable Drilling Equipment Rotary Torque 365N.m Pneumatic Drilling Rig 7

Products Description

Product name
Drilling Rig
Model
SPC300D
SPC300T
Dimension
6100*2200*2105mm
5777*2210*1942mm
Min.Ground Clearance
250 mm
250mm
Weight
5400 kg
5400kg
Travel Speed
0-3.5 km/h
0-3.5km/h
Travel Motor Power
8.8 kW x2
8.8 kW x2
Gradeability
35°
35°
Swing Angle
13°
13°
Rotary Head Power
3.7kw
3.8kw
Rotary Torque
2000 Nm (at 0.7 MPa)
365N.m
Max.Rotary Speed
70rpm
380rpm
Air Consumption
1.73 m³/min at 0.3Mpa
16m³/min at 0.55Mpa
Max.Air Pressure
2.5MPa
1.0Mpa
Air Quantity
15-25 m3/min
15-25m³/min
Drill rod
φ76,φ89 X3000 mm
T38, T45*3050/3660mm
Hydraulic tank capacity
18L
55L
Feed stroke
3980 mm
3980mm
Maximum forward thrust
11KN
11KN
Sliding frame swing
left 47°/right 54°
Left 47°/Right 54°
Drill boom tilt
Up 46°/Down 23°
Up 46°/Down 23°
Drill boom swing
Left 40°/Rght 40°
Left 40°/Right 40°


DTH Drill Machine Portable Drilling Equipment Rotary Torque 365N.m Pneumatic Drilling Rig 8

DTH Drill Machine Portable Drilling Equipment Rotary Torque 365N.m Pneumatic Drilling Rig 9



DTH Drill Machine Portable Drilling Equipment Rotary Torque 365N.m Pneumatic Drilling Rig 10DTH Drill Machine Portable Drilling Equipment Rotary Torque 365N.m Pneumatic Drilling Rig 11DTH Drill Machine Portable Drilling Equipment Rotary Torque 365N.m Pneumatic Drilling Rig 12



DTH Drill Machine Portable Drilling Equipment Rotary Torque 365N.m Pneumatic Drilling Rig 13DTH Drill Machine Portable Drilling Equipment Rotary Torque 365N.m Pneumatic Drilling Rig 14
Company Profile
DTH Drill Machine Portable Drilling Equipment Rotary Torque 365N.m Pneumatic Drilling Rig 15
DTH Drill Machine Portable Drilling Equipment Rotary Torque 365N.m Pneumatic Drilling Rig 16


DTH Drill Machine Portable Drilling Equipment Rotary Torque 365N.m Pneumatic Drilling Rig 17
1.What can you buy from us?
Tunneling Jumbo drilling rig ,DTH drilling rig,Automatic drilling rig with rod changing system,rotary drilling rig,pile driver machine, core drilling rig ,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,Tricone bit ,eccentric casing system,DTH hammer,drill rod,spare parts etc.

2.How can I make payment?
A: You can pay directly online on Alibaba with credit card, or TT, Western Union, LC etc.

3. How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.

4.How is your quality control? A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.

5.Do you have any certificate of authorization?
A: Our machinery is CE certified.
